LoRA Fine-Tuning Crashed on Three MoE Models in mlx-lm. The Fix Was One Line, Three Times.

Fine-tuning a mixture-of-experts model with mlx_lm.lora --train on Apple Silicon currently crashes for three model families — granitemoe, granitemoehybrid, and lfm2_moe — with a VJP error on the router's integer expert indices. I hit it mid-training, traced it to a one-line fix that every other MoE model in the repo already had, and upstreamed it as mlx-lm PR #1795, merged today.

This isn't a deep investigation like the last piece I wrote about a PR — it's the other kind of contribution: small, mechanical, and almost entirely about noticing that a fix which already existed elsewhere in the codebase hadn't been applied everywhere it needed to be.

What broke

I was surveying MoE trainability on an M5 Pro, running LoRA fine-tunes against Qwen3-30B-A3B and a few other mixture-of-experts checkpoints to see what worked out of the box. Training on granitemoe crashed immediately on the first backward pass:

ValueError: [gather_axis] Cannot calculate VJP with respect to indices. Use
stop_gradient on indices to stop gradients from being computed.

Same error, same shape, on granitemoehybrid and lfm2_moe. Forward inference worked fine on all three — this only shows up once you ask MLX for gradients.

Why it happens

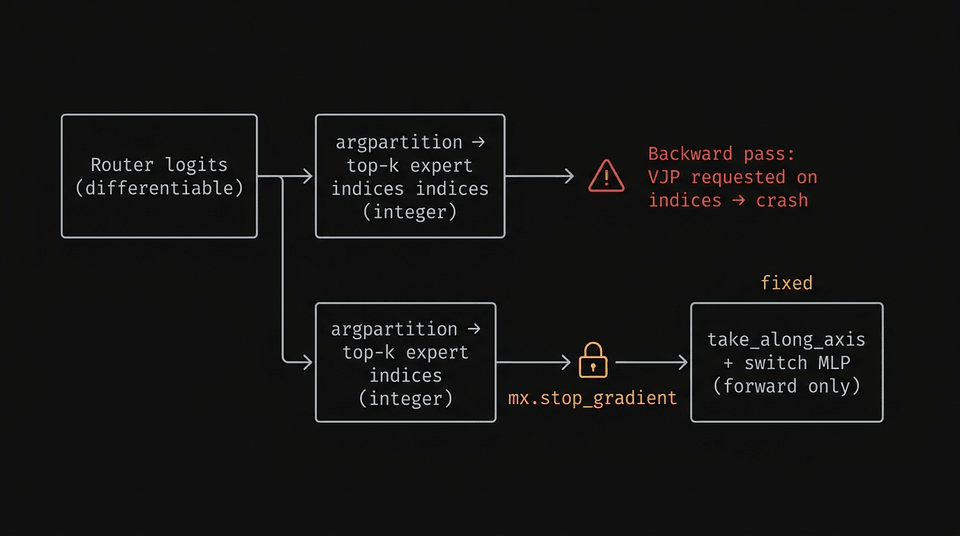

Every MoE layer in mlx_lm does roughly the same thing: run the input through a router to get per-expert logits, pick the top-k experts, and gather those experts' outputs. The router logits are differentiable — that's the point, the router is a learned linear layer. But the indices you get from picking the top-k are integers, produced by mx.argpartition, and MLX can't compute a vector-Jacobian product through an integer index into gather_axis / take_along_axis. You have to explicitly tell autograd "stop here, these are not differentiable":

top_k_idx = mx.stop_gradient(
    mx.argpartition(logits, kth=-self.top_k, axis=-1)[..., -self.top_k :]
)

Without that barrier, calling .backward() (which mlx_lm.lora --train does on every step) asks for a gradient with respect to the indices themselves, and MLX correctly refuses.

The part that made this an easy fix

This wasn't a novel bug. A quick survey of mlx_lm/models/ showed that most sibling MoE implementations — olmoe, mixtral, qwen2_moe, phimoe, glm4_moe, bailing_moe, ernie4_5_moe, exaone_moe, afmoe, and others — already wrap their routing indices in mx.stop_gradient. And a few days earlier, PR #1787 had landed the identical fix for qwen3_moe. Between the existing pattern and that precedent, granitemoe, granitemoehybrid, and lfm2_moe were simply the last three index-selecting MoE models in the repo missing the guard.

The fix per file:

• granitemoe.py / granitemoehybrid.py — wrap the argpartition slice in mx.stop_gradient(...), same shape as the existing fixed models.
• lfm2_moe.py — one added line, inds = mx.stop_gradient(inds), right after the indices are computed.

88 additions, 6 deletions, almost all of it test code.

Testing it properly

A one-line diff is easy to get wrong in a way that looks right — forward pass unaffected, no visible symptom until someone runs --train. So the PR adds a real regression test per model: build a tiny config (16 hidden size, 4 experts, 1–2 layers, no downloaded weights), run one forward and backward pass, assert it doesn't raise. All three failed 3/3 before the fix and passed 3/3 after.

The first review comment from the mlx-lm maintainer wasn't about the fix itself — it was about test placement: move the tests into tests/test_tuner_trainer.py to match the structure #1787 had already established, instead of a new standalone file. Small ask, straightforward to match:

def test_granitemoe_backward(self):
    from mlx_lm.models import granitemoe
    model = granitemoe.Model(granitemoe.ModelArgs(...))
    self._assert_backward(model)

Repeated for the other two families, using each model's actual config shape (lfm2_moe needed layer_types=["conv", "full_attention"] and conv_L_cache to build at all). Full test_tuner_trainer.py passed locally — 5 tests, all green — before the second push.

Why this is worth writing up at all

There's no dramatic verification story here, unlike reviewing ornith-9b's quecto PR, where the interesting part was catching a claim that didn't match the diff. This one is closer to the median useful open-source contribution: hit a real crash doing real work, recognize it as an instance of a pattern the maintainers had already solved twice, apply the same fix a third time with proper regression coverage, and get it merged same-week with one round of review feedback.

If you're running LoRA fine-tunes against MoE checkpoints on mlx-lm and hit [gather_axis] Cannot calculate VJP with respect to indices on a model family not listed above, this is almost certainly the same bug — check whether that model's router wraps its top-k indices in mx.stop_gradient before the gather.
